KTY1-350M WHOLE BRIDGE AUTOMATIC GRINDING AND CUTTING MACHINE

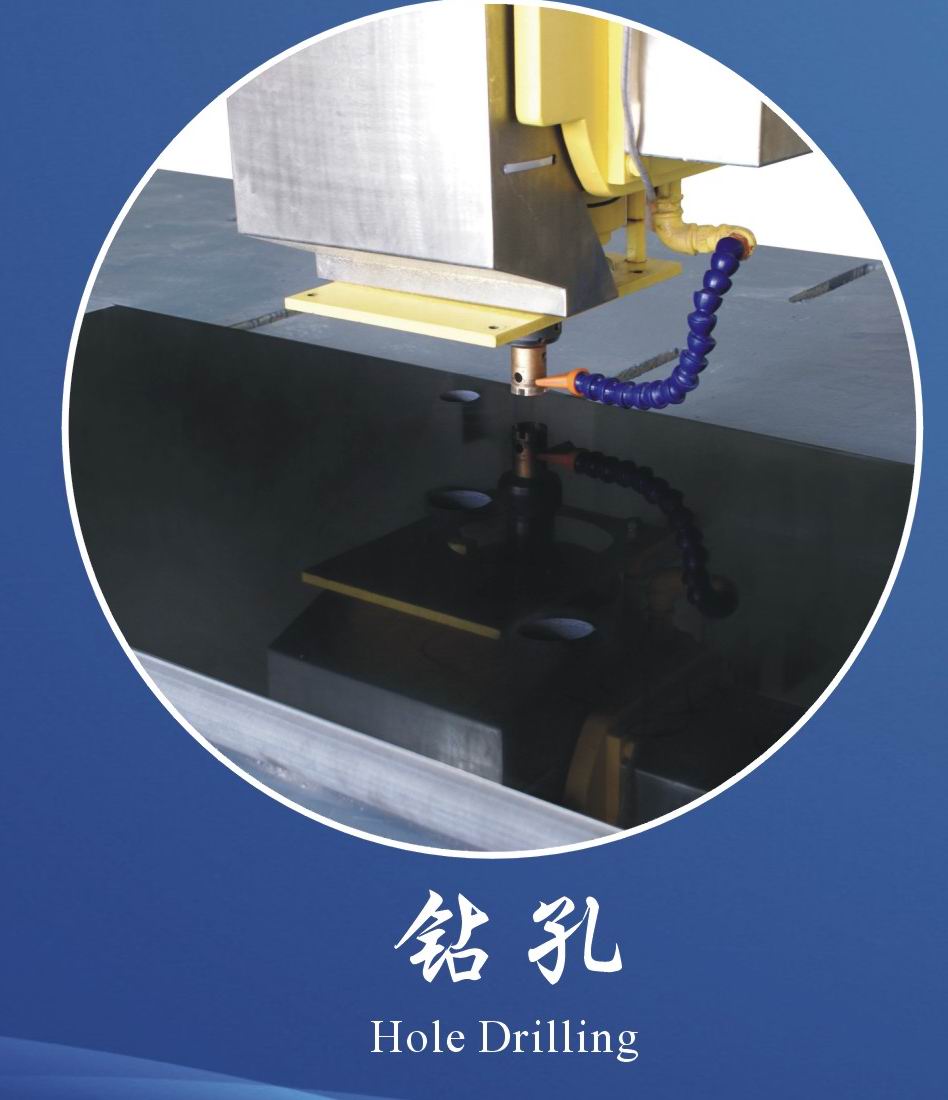

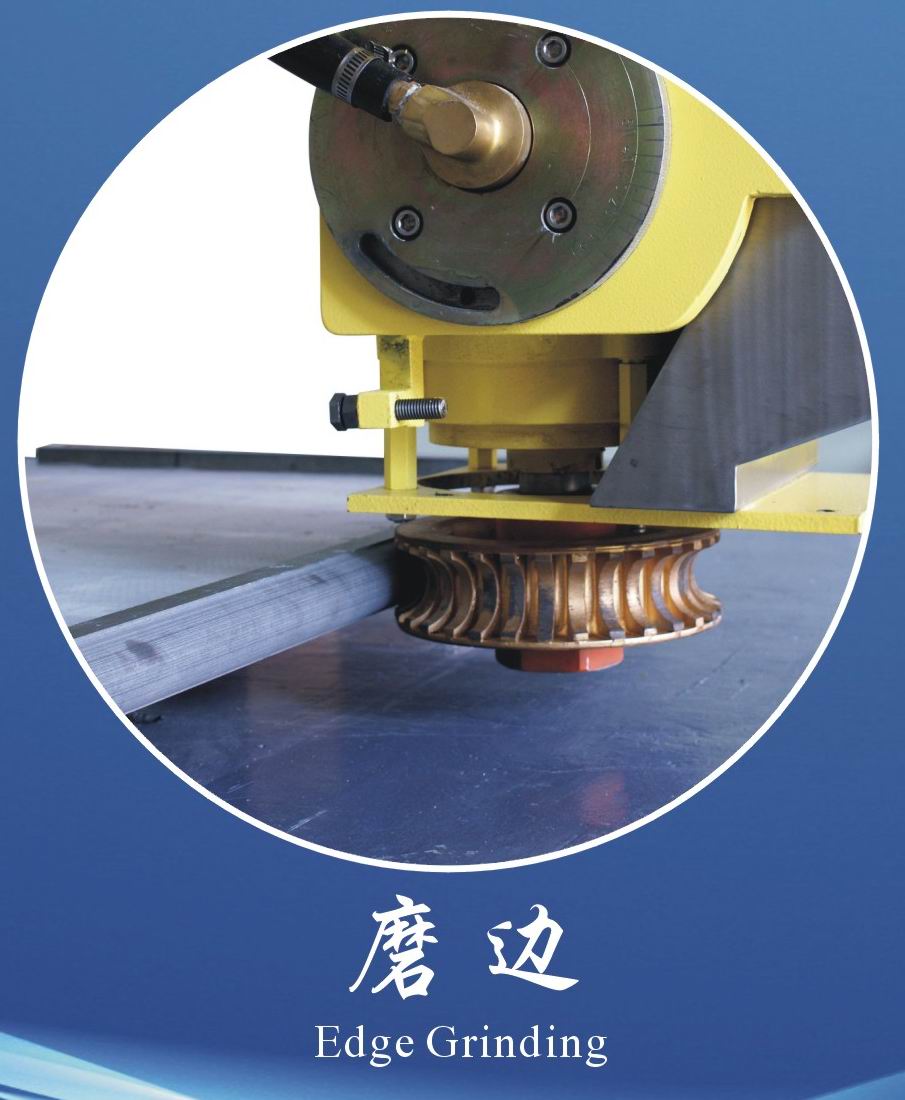

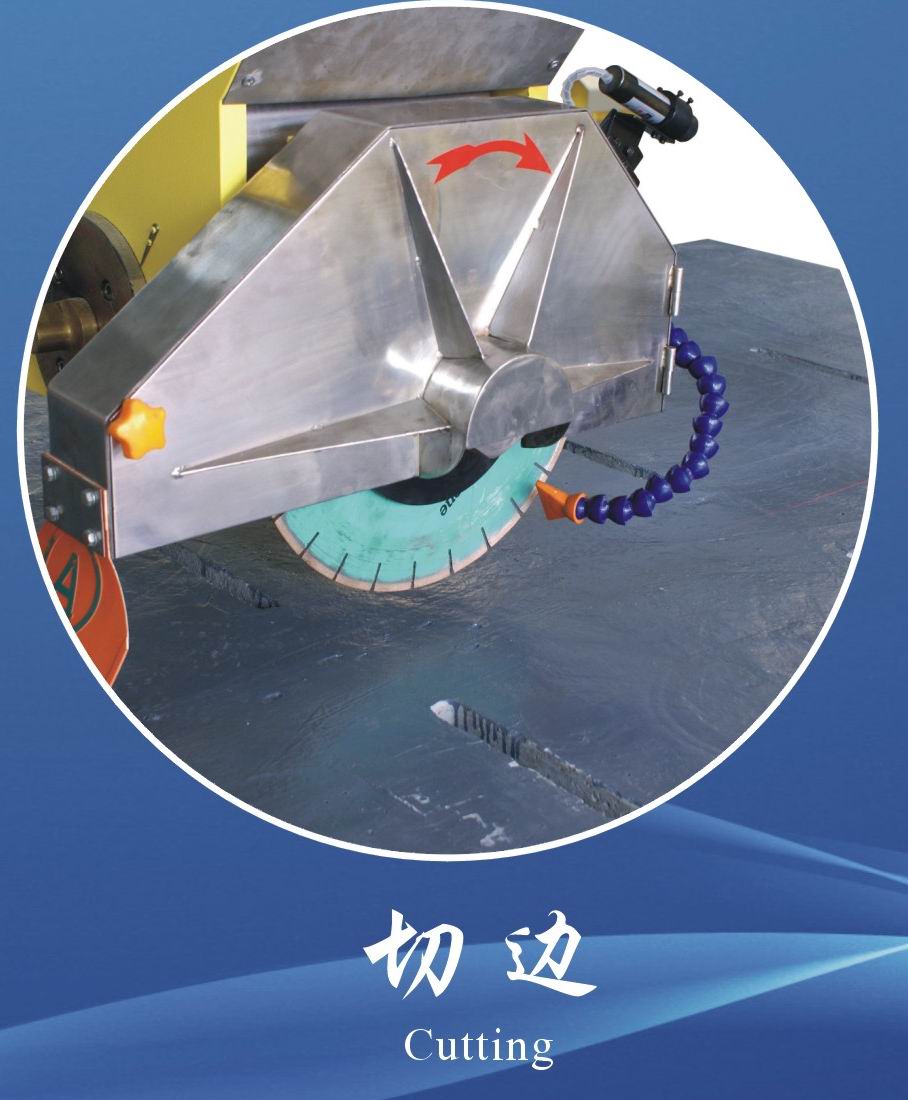

   It’s mainly used for slab cutting, edge grinding,edge chamfering and holes drilling. For its one-piece structure, it is small in size and has advantages such as convenient to transport and install, easy to operate.

 Technical Specifications

Maximum Diameter of Blade

φ350-400mm

Grinding Wheel Diameter

φ150-250mm

Drill Bit Diameter

φ10-150mm

Maximum Processing Size

3200 x 2000mm

Maximum Up-Dowm Travel of Cutter

250mm

Power of Main Motor

11kW

Cutting Thickness

0-80mm

Rotation of the Cutter

0、90°

Rake Angle of the Cutter

0-90°

Machine Dimensions(L×B×H)

5600x2950x2250mm

Gross Weight

5000kgs
